Wall

system

Hardly any other system has conquered the outer shell of the building as quickly as the thermal insulation composite system in recent years.

The facade insulation panels from Philippine can be used in modern ETIC systems and of course also meet the high quality requirements of the ETIC Systems Association.

ETICS Insulation Panels

symbole4Dimensions/mm (standard): Gross dimension 1000 x 500
Packaging: PE foil free of charge

PH-WDV 040 WAP

pdf downloadThermal Conductivity 0,040 W/mK
Field of use according to DIN 4108-10 WAP
Reaction to Fire according to DIN EN 13501, Euroclass E
With smooth edges

PH-WDV 035 WAP

pdf downloadThermal Conductivity 0,035 W/mK
Field of use according to DIN 4108-10 WAP
Reaction to Fire according to DIN EN 13501, Euroclass E
With smooth edges

ETICS Insulation Panels

symbole4

Dimensions/mm (standard): Gross dimension 1000 x 500
Packaging: PE foil free of charge

PH-WDV 032 WAP

pdf downloadThermal Conductivity 0,032 W/mK
Field of use according to DIN 4108-10 WAP
Reaction to Fire according to DIN EN 13501, Euroclass E
With smooth edges

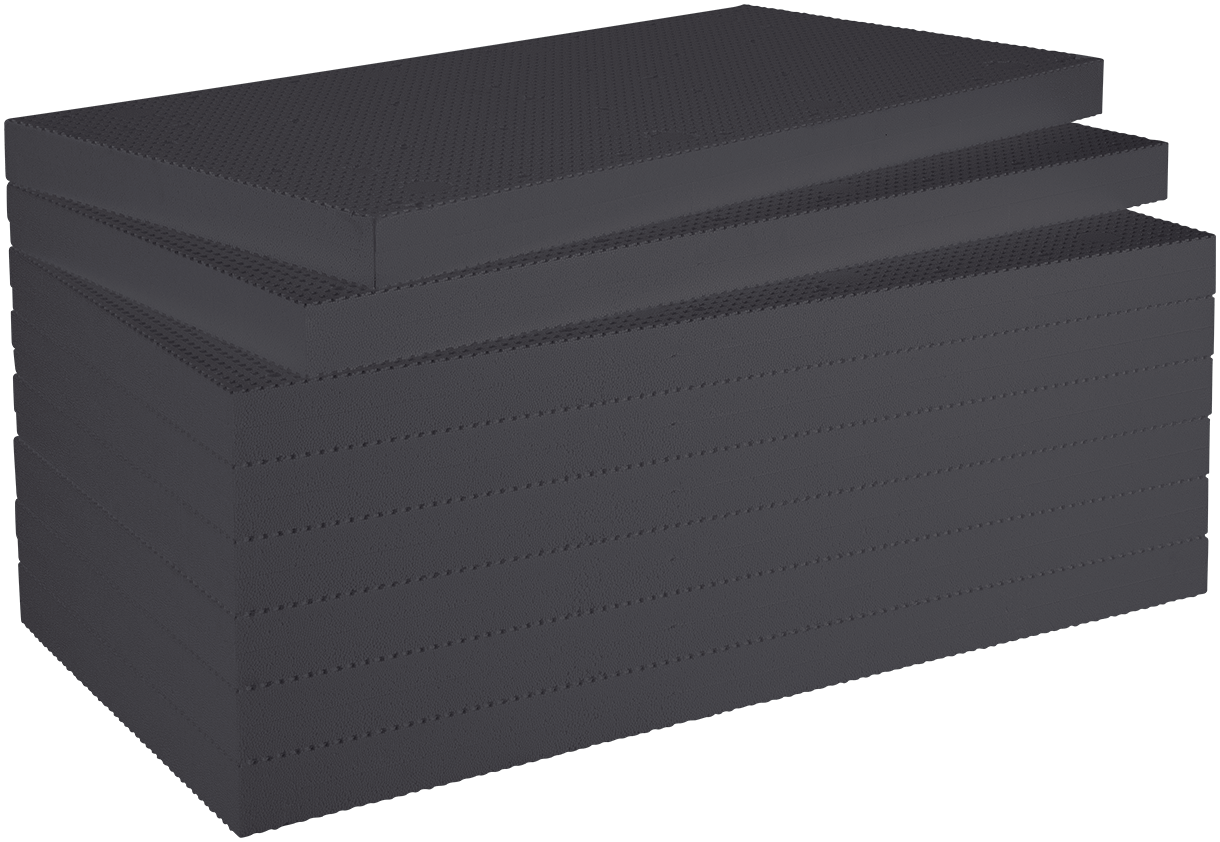

Cellar Insulation Panels (ETICS)

symbole

(machinefoamed)
Dimensions/mm (standard): Gross dimension 1000 x 500
Packaging: PE foil free of charge

PH-WDV PW

pdf downloadWLG 035/039 | Compressive Strength ≥ 150 kPa
Machinefoamed Insulation panels made of polystyrene EPS according to DIN 13163.
External insulation of walls and non-load-bearing floor slabs against the ground.

Thermal Conductivity 0,035 W/mK in the base area outside of the ground.
Thermal Conductivity 0,039 W/mK in the ground.
Field of use according to DIN 4108-10 PW
Reaction to Fire according to DIN EN 13501, Euroclass E.
Permissible installation depth up to 3 m., Compressive Strength ≥ 150 kPa.

EPS molding with smooth edges and structured surface for filling.
